Arching Roof Panel Roll Forming Machine
|Payment Type:||T/T,L/C,D/A,D/P,Western Union|
|Terms of Trade:||FOB|
|Min. Order:||1 Set/Sets|
|Delivery Time:||15 Days|
|Packaging:||as customer requirem|
|Transportation:||Ocean,Land,as customer requirem|
|Place of Origin:||China|
|Supply Ability:||30 sets/month|
Model No.: ZT-600-305
Arching Roof Panel Roll Forming Machine
Arching Roof Panel is widely used in Various types of warehouses, workshops, exhibition halls, stadiums and other markets and stylistic building system.
Arching Roof Panel Roll Forming Machine is comprised of decoiler, forming unit, hydraulic mould cutting device, electric control system, hydraulic system and unloading rack. All parts are mounted on a mobile pedestal. So it is suitable for site working.
One profile drawing for reference (600-305):
Main parameters of Arching Roof Panel Roll Forming Machine :
1 Mounting dimension: 8900mmX2100mmX2300mm(With single axle 4 tires)
2 Total weight: About 8 Ton
3 Control system: electric control
4 Cutting type : Mechanical Cutting
5 Seaming Power: 1.1KW+1.1KW
6 Total motor power : 15.2KW
7 Material of rollers: 45# steel, quenched HRC 58-62
8 Material of roller shafts: 45# steel, quenched HRC 55~65, hard chrome plating
9 Material of cutting blade: 12CrMoV material, Heat treatment
10 Step of rollers: 13 steps
11 Working Speed : Forming Part : 15m/min, Bending Part: 13m/min,Seaming : 16m/min
12 Max span: 4~28m
Manual De-coiler 1
Seaming machine 2
Run out table 20
Leg of run out table 19
Small leg of run out tab 48
Fastening screw for leg 58
Side support 10
Pin of suspender 2
Driving chain 3(run)
Chain link 3
Half section 3
Super plier 1
Metal scissor 1
Crank handle 2
Deatiled pictures of Arching Roof Roll Forming Machine:
a.There is brake system on de-coiler, if the machine stop suddenly, the de-coiler can be stopped accordingly.
b.Arching Roof Panel Roll Making Machine includes 20 more wider rollers than other supplier`s machine, which can make the appearance of finished arch more beautiful.
c.Arching Roof Panel Roll Making Machine`s rollers and shafts are connected with pin inside and screw outside, and with reinforcing design on both sides of rollers, which can fix the rollers and shafts tightly without deformation.
d.Gear, Sprocket driving from superior workmanship.

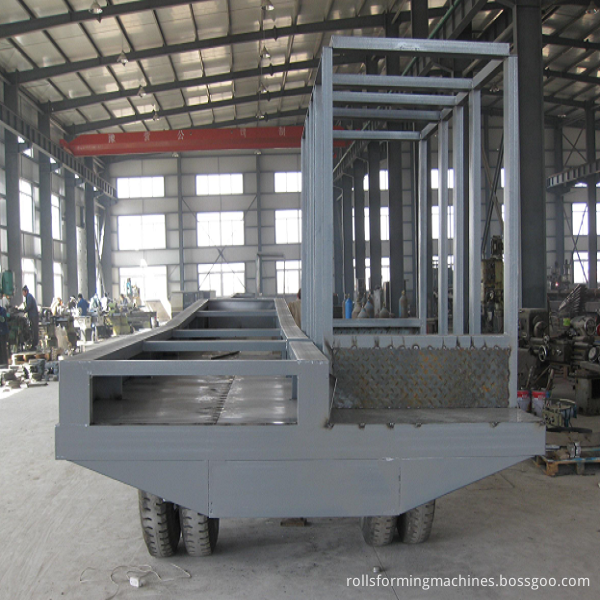

e.Adopt car rear axle as the axle of machine, with size of 825-16 tires, can load more and has better impact resistance and damping effect.
f.Cutting material: Cr12 MoV, best and sharpest cutting material
