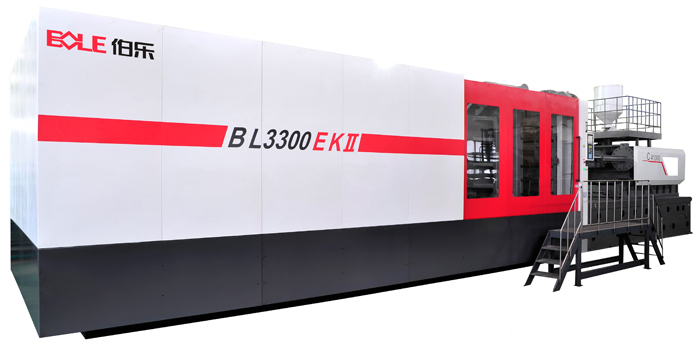

3300 ton plastic molding machine for auto parts

3300 ton plastic molding machine for auto parts

    Payment Type: L/C,T/T
    Terms of Trade: FOB
    Min. Order: 1 Set/Sets
    Delivery Time: 30 Days
    Packaging: standard export packing
    Brand: Bole Machinery
    Transportation: Ocean
    Place of Origin: Zhejiang, China

Basic Info

Model No.: BL3300EKII

Product Description

3300 ton plastic molding machine for auto parts

1. BOLE centre clamping structure

Since the new "national initiative, central lock mode" EKII series of market has, Bole brand presses in recent years yearly sales steadily increased significantly. In new product technology leading strategy under the guidance of the thoughts, Bole injection molding machine compared with peers, has obvious advantages: source in the center of design patent locking mold configuration, Bole presses the production of product precision is higher than peers, compared with peers, the products there is no flash, or Flash significantly reduced; Bole presses can help users save 2-5% of plastic raw materials.

injection mold machines

2. Product Instructions

plastic molding machine for auto parts



Bole injection mold machines

DESCRIPTION UNIT BL3300EKⅡ/C70000 BL3300EKⅡ/C90000
Injection working capacity 70000 90000
Screw diameter A B C D A B C D
mm 200 220 230 240 230 240 250 260
Screw ratio 24 22 21 20 23 22 21 20
Theoretical injection capacity cm3 36285 43905 47987 52251 53804 58584 63568 68755
Shot weight(PS) g 33383 40393 44148 48071 49500 53898 58483 63255
oz 1177.5 1424.8 1557.3 1695.6 1746.0 1901.2 2062.9 2231.2
Injection rate into Air cm^3/s 1816 2197 2402 2615 2511 2734 2967 3209
Injection pressure MPa 193 160 146 134 168 154 142 131
plasticizing rate g/s 364 472 515 589 543 621 724 784
Max. injection speed mm/s 57.8 60.5
Max. Screw speed r/min 54 57
Clamping force kN 33000
Opening stroke mm 2200
Space between tie bar mm×mm 2110×1910
Min. mould height(T-slot) mm 950
Max. mould height(T-slot) mm 2000
Max. distance Platen(T-slot) mm 4200
Ejector stroke mm 550
Ejector force forward kN 565
Ejector force back kN 442
Number of ejector bar PC 25
Sys. Pressure MPa 16 16
Pump Motor kW 47+47+47+47+47 47+47+47+47+47+47
Heater power kW 222.7 246
Number of temp. control zones 8+1 8+1
Hoper capacity kg 400 400
Oil tank capacity L 3500 4000
Machine dimensions(L×W×H) m×m×m 20.5×4.45×5.6 21.5×4.45×6.0
Machine weight Ton 255 280

3. Clients Cases

plastic molding machine for auto partsinjection mould machines


injection mould machines

4. Bole Competitive Philosophy

Leading technology and performance

China unique producer, central locking toggle

CIML carbon-fiber products intelligent moulding line, made for lightweight of automobile

The performance of Electro- hydraulic hybrid two platen machine has reached the leading level

5. The world`s leading processing equipment

mould machines

Bole injection machine

moulding machine

Ningbo Shuangma Machinery Industry Co., Ltd




BOLE Machinery (hereinafter referred to as [BOLE") was founded in 1998. As a subsidiary of CHENGLU group, BOLE is a high-tech enterprises that focus on the research, development and manufacture of precision machinery equipment. It adopts the mode of [technology from Germany, made in China", integrates design, manufacture, assembly, testing and sales, and provides complete and professional injection moulding devices for customers. BOLE injection moulding machines are developed and directed by German experts. The range of products covers nearly 100 specifications and 6 main series, including high-precision Two-Platen DK series, hydraulic servo EK-S series, full-electric FE series, carbon-fiber products intelligent moulding line CIML series, high-speed HK series and multi-materials injection MK series. The range of clamping force is from 70 ton to 6800 ton, and the range of injection weight is from 65g to 60000g.

As a latecomer in China`s injection moulding machine market, BOLE keeps competing with other brands, and wins the trust from customers with high-performance and high-stability product as well as customized service. So far, BOLE injection moulding machines have been sold and exported to more than 70 countries. Especially in the last three years, the developed countries in America and Europe have grown into the main markets of BOLE.

BOLE proposes a comprehensive strategic partnership with the well-known household appliances enterprises including GREE, TCL, AUX, etc. Meanwhile, BOLE plays an important role in Auto industry and builds a strategic cooperation with famous auto-part suppliers including Ningbo HuaXiang Group, Germany Adler Pelzer Group, etc. So far BOLE has entered the supporting systems of Auto-part manufacturers and suppliers including Beijing Benz, Shenyang Huachen BMW, China FAW Group, Shanghai Volkswagen, Shanghai General Motors, Geely Automobile, etc.

In the future BOLE will take intelligence, efficiency, precision and energy saving as the direction of innovation and development, and concentrate on improving the core competitiveness of customers. Besides, BOLE will also continue to advance the path integrated by Hi-Tech industry development, professional production and perfect sales, and establish a sustainable modern high-tech brand.

[BOLE Story]

2018 R&D succeeded on well-built MK series.

2017 Joined China plastics processing industry association (CPPIA) and became the governing unit; R&D success on the next generation of EK-S series.

2016 Launched servo energy-saving injection moulding machine EKII series.

2015 The team led by a senior German expert, developed world-leading Two-platen machine DK series successfully; Carbon-fiber products intelligent moulding line CIML series was developed and launched; became No.1 on the growth rate of China's plastics industries; established a Strategic cooperation with Gree Electric Appliances Inc.

2014 Became the Top 25 enterprise of comprehensive strength among China`s plastic machinery industry; became the Top 10 among injection moulding machine enterprises in China.

2012 Large-volume injection moulding machine was developed.

2011 BOLE entered the rapid development stage, and Central Locking Structure of EK series was awarded the national patent. ( Patent No.ZL201110250342.5 )

2010 The third generation super-energy-saving servo precision injection molding machine EK series was developed and launched totally with cost effectiveness, outer-crank-shaft mechanism and larger parameters; BOLE`s scientific research bases were established for servo energy-saving project in Chinese Academy of Sciences (CAS) and Nanjing University of Aeronautics and Astronautics (NUAA).

2009 Launched small and medium-sized injection molding machines of EK series successfully; The Malaysian factory was completed and put into operation; Bole developed rapidly on transnational operation.

2008 Invested 130 million RMB, Introduced top talent from abroad, and developed successfully EK series injection moulding machine with central locking mechanism.

2007 CHENGLU Group wholly owned SHUANGMA Machinery, and invested 300 million RMB to build BOLE industrial park.

2006 Awarded Nation High-tech Enterprise by the ministry of science and technology.

2005 Energy-saving servo system was developed with proprietary intellectual property rights, and the first set of super energy-saving servo injection moulding machine was produced.

2004 undertook the national 863 scientific research project, and built provincial engineering (technology) center.

2003 listed as the Chinese Injection Molding Machine Characteristic Industrial Base.

2002 Thousand-ton-level injection moulding machine was developed with proprietary intellectual property rights.

1998 Ningbo shuangma machinery industry co. LTD. Was established.
